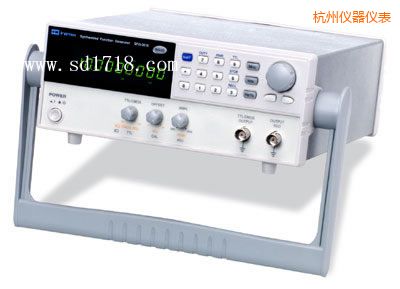

    數位合成函數信號產生器
    型 號:SFG-2007
    品 牌:臺灣固緯GWINSTEK
    技術指標:頻率范圍:0.1Hz~7MHz
    杭州數位合成函數信號產生器-SFG-2007-臺灣固緯GWINSTEK

    MAIN

    Frequency Range
    (For Sine, Square)
    0.1Hz~7MHz
    Frequency Range
    (For Triangle)
    0.1Hz~1MHz
    Frequency Resolution 0.1Hz
    Frequency Stability ± 20 ppm
    Frequency Accuracy ± 20 ppm
    Frequency Aging ± 5 ppm / year
    Output Function Sine, Square, Triangle
    Amplitude Range 10Vpp(into 50Ωload)
    Flatness(Sinewave relative to 1kHz) <± 0.3dB,0.1Hz~1MHz; <± 0.5dB,1MHz~4MHz; <± 2dB, 4MHz~10MHz
    Impedance 50Ω±10%
    Attenuator -20dB±1dB×2
    DC Offset <-5V~>+5V(into 50Ωload)
    Duty Control Range 20% to 80% below 1MHz (Square wave only)
    Duty Control Resolution 1%
    Display 9 digits LED display

    SINE WAVE

    Harmonics Distortion -55dBc,0.1Hz~200kHz; -40dBc,0.2MHz~4MHz; -30dBc,4MHz~10MHz
    (Specification applied from MAX. to 1/10 level)

    TRIANGLE WAVE

    Linear ≧98%,0.1Hz~100kHz;≧95%,100kHz~1MHz

    SQUARE WAVE

    Symmetry ± 1% of period +4ns to 0.1Hz~100kHz ;Rise or Fall Time; ≦25ns at maximum output.(into 50Ωload)

    CMOS OUTPUT

    Level 4Vpp±1Vpp~14.5Vpp±0.5Vpp adjustable; Rise or Fall Time; ≦120ns

    TTL OUTPUT

    Level ≧3Vpp ; Fan Out; 20 TTL load ; Rise or Fall Time ; ≦25ns
    STORE/RECALL FUNCTION
    10 groups of Setting memories
    POWER SOURCE AC115V, 230V±15%,50/60Hz

    ACCESSORIES

    Instruction manual x 1
    Power Cord x 1
    GTL-101 x 1
    DIMENSION & WEIGHT 107(W)×266(H)×293(D) m/m
    Approx. 3.1kg
    ,
